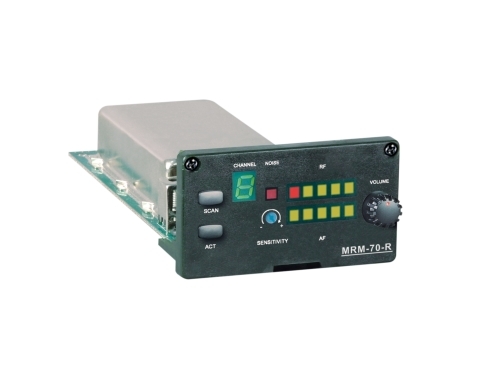

Mipro - MRM-70-R Single-Channel Diversity Receiver Module

Advanced diversity technology for optimum reception quality.
Preset with 16 auto-scanable frequencies.
One-touch Scan for one of the 16 clear, interference-free frequencies.
One-touch ACT™ syncs the transmitter and receiver frequency automatically.
Bright and easy-to-read channel display.
5-segment RF and Audio meters.
Dual "PiloTone & NoiseLock" circuits minimize interference.
Warning indicator detects potential interference.
"Sensitivity" adjustor can be adjusted to minimize interference.
Modular design allows easy installation and replacement.
When installed, master volume of MA-708 & MA-808 portables can be wirelessly controlled from a distance by a ACT-30Hr handheld transmitter microphone.


Frequency Range	UHF 480~934MHz
Oscillation Mode	PLL synthesized
Bandwidth	24MHz
Preset Channels	16
Receiving Mode	CPU-controlled Diversity Receiving
Squelch Control	"PiloTone & NoiseLock" dual-squelch circuit
Display Status	Channel, RF & audio meters, interference warning indicator & Sensitivity adjustor.
Sensitivity	6dBµV, at S/N>80dB
Spurious Emissions	<82dB
Frequency Response	60Hz~15kHz (Overall system)
S/N Ratio	>100dBA
T.H.D.	<0.5% @ 1kHz (Dev.=40kHz)
AF Output	610mV rms
Power Supply	12~15V DC
Current Consumption	<190 mA
Operating Temperature	-10~60℃
Dimensions	75(W)×35(H)×141(D)mm / 3.0(W)x1.4(H)x5.6(D)"
Weight	126g / 4.4oz
