MM-90 True Condenser Vocal Microphone

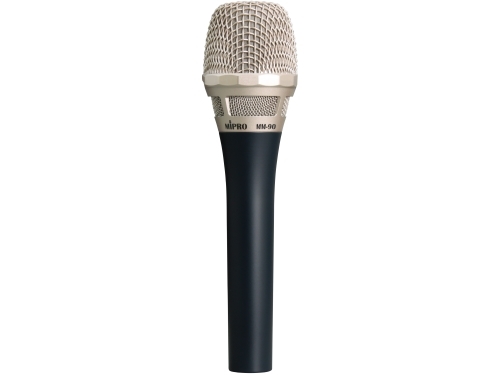

Mipro MM-90 True Condenser Vocal Microphone

Mipro MM-90 True Condenser Vocal Microphone







Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Related
  • Diagrams

For over a decade, MIPRO wire & wireless condenser handheld microphones provide clear, detailed sound quality and become preference of audio professionals.

MM-90 is fitted with MU-90 capsule module. The exterior multi-layer metal grille protects the capsule to prevent impact and pop noise. The upper exterior grille is able to be detached easily for cleaning and hygiene practices.

They provide superb directionality and feedback suppression for bright and detailed sound quality. Proprietary capsule suspension design eliminates vibrations and touch noise characteristics for natural sound reproduction.

External 12~48V DC phantom power is required for MM-90 microphone. It’s ideal for stage, broadcast, studios and musical hall applications.


Housing Die-cast Zinc Alloy Metal Housing
Directionality Hypercardioid
Sensitivity -46dB± 1dBV/Pa (0dB=1V Open-circuit voltage)
Frequency Response 50Hz~20kHz @94dB SPL
Self-Noise <22dB SPL (Typical, A-weighted)
S/N Ratio >72dB @94dB SPL (1Pa)
Max. Input SPL 147dB (Typical, 1% THD)
Dynamic Range 125dB
Power Supply External phantom power 12~52V DC
Current Consumption 5.6 mA
Output Impedance 200Ω
Dimensions 50(Ø)×189(L)mm / 2.0(Ø)×7.4(L)"
Weight Approx. 285g / 10oz
Notes Refer to actual product in the event of product discrepancy
